Carbide Square End Mill for Mold Steel
Suitable for slotting, side milling, shoulder machining and flat-surface machining of mold and die steels.
Request Specifications
MOLD & DIE STEEL · UP TO HRC60 · WHOLESALE
Carbide End Mills for Mold Steel
ZHY carbide end mills for mold steel combine an ultra-fine carbide substrate, HIPIMS-deposited TiAlSiN coating and unequal cutting geometry for stable machining of mold, die and tool steels up to HRC60. Square, ball nose and corner radius designs are available in standard and customized configurations.
✓ Grain Size Below 0.6 μm
✓ 12% Cobalt Content
✓ 35° / 37° Unequal Helix
✓ Standard & Custom Sizes
Mold Steel End Mill Range
Select the appropriate cutting profile according to the mold geometry, machining stage and required surface condition.

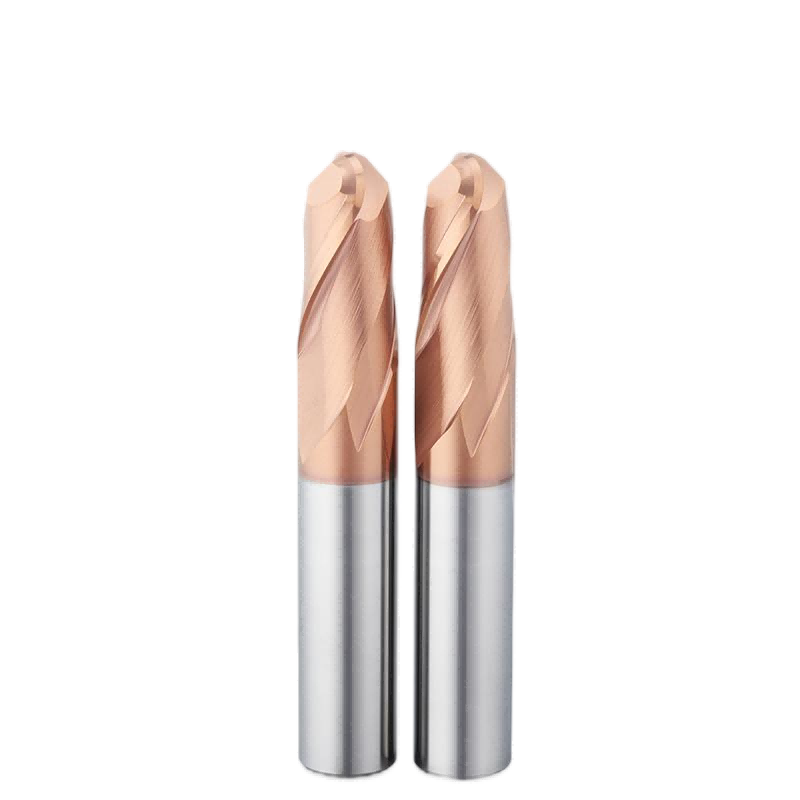

Carbide Ball Nose End Mill for Mold Steel
Designed for cavities, curved surfaces, three-dimensional contours and mold profile finishing.
Request Specifications

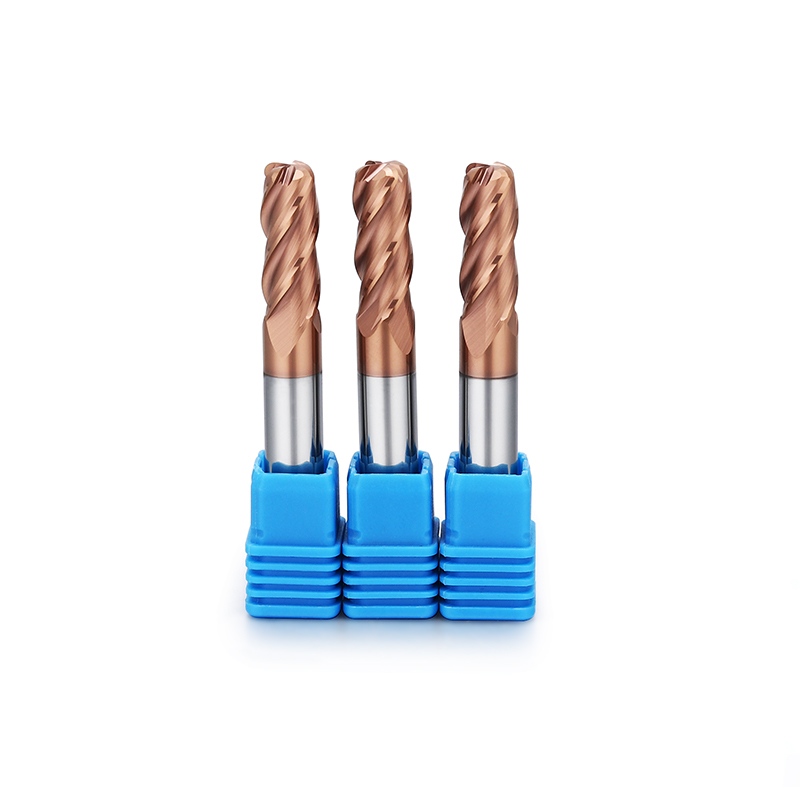

Carbide Corner Radius End Mill for Mold Steel
Combines a flat-bottom cutting profile with reinforced corner strength for shoulders, pockets and semi-finishing.
Request SpecificationsRecommended Mold Machining Applications
The range supports common mold manufacturing operations from material removal to cavity and profile finishing.
01
Slotting
Full-width slot machining in mold and die steels.
02
Side Milling
Peripheral machining of walls and external profiles.
03
Shoulder Milling
Controlled shoulder and flat-bottom machining.
04
Cavity Machining
Pockets, recessed areas and internal mold profiles.
05
Profile Finishing
Curved surfaces, transitions and mold contours.
Technical Performance Highlights
The carbide substrate, coating, anti-vibration geometry and controlled edge preparation are combined to support stable mold steel machining.
Ultra-Fine Carbide Substrate
Ultra-fine carbide with a grain size below 0.6 μm and 12% cobalt content provides cutting-edge strength, toughness and wear resistance for demanding mold steels.
HIPIMS TiAlSiN Coating
The TiAlSiN coating uses HIPIMS deposition and an enhanced alloying design to improve high-temperature performance, reduce friction and support resistance to impact and crack propagation at temperatures up to approximately 1200°C.
88° / 92° Unequal End Teeth
The two-degree unequal end-tooth division disrupts repeated cutting forces, helping improve machining stability and reduce vibration marks on the workpiece surface.
35° / 37° Unequal Helix
Unequal peripheral helix angles help reduce harmonic vibration during side milling, cavity machining and contour operations.
0° to −5° Rake Geometry
The controlled rake-angle range reinforces the cutting edge and supports stable machining in difficult mold and tool steels with hardness levels up to HRC60.
Fluid-Blasting Edge Preparation
Fluid blasting helps remove microscopic burrs and stabilize the cutting edge, contributing to more consistent cutting and improved workpiece surface quality.
Automated Edge Polishing
Automated rubber-bonded diamond polishing helps maintain consistent edge preparation across the tool, with the preparation value controlled within ±0.003 mm.
Walter Five-Axis Grinding
Walter five-axis precision grinding equipment supports cutting-edge sharpness, dimensional accuracy and repeatable tool geometry for smoother cutting.
HELICHECK Profile Inspection
Tool profiles are inspected using Walter HELICHECK PLUS, supported by 150× optical inspection and 300× high-definition appearance inspection.
Radius Accuracy Within 3 μm
Ball nose and corner radius tools can be controlled to a radius accuracy within 3 μm for consistent cavity, profile and contour machining.
Recommended Workpiece Materials
Mainly recommended for mold, die, powder-metallurgy and selected tool steels with workpiece hardness up to HRC60.
H13 Hot-Work Tool Steel
SKD61 Mold Steel
718 / 718H Mold Steel
CPM Powder Tool Steel
Pre-Hardened Mold Steel
Hot-Work Die Steel
Selected difficult-to-machine stainless steel applications, including 316-grade materials, can also be evaluated according to the machining operation. For applications focused mainly on stainless steel, use the corresponding ZHY stainless steel end mill range.
Available Product Options
Standard tools and customized configurations can be supplied according to mold geometry, workpiece hardness and purchasing requirements.
| Tool Type | Square / Ball Nose / Corner Radius |
|---|---|
| Flute Options | Standard Configurations / Custom |
| Carbide Grain Size | Below 0.6 μm |
| Cobalt Content | 12% |
| Coating | HIPIMS TiAlSiN Coating / Custom Coating |
| End-Tooth Geometry | 88° / 92° Unequal Division |
| Helix Geometry | 35° / 37° Unequal Helix |
| Rake Angle | 0° to −5° |
| Hardness Range | Recommended for Workpiece Materials up to HRC60 |
| Diameter and Length | Standard Sizes / Long Reach / Custom Dimensions |
| Marking | ZHY Logo / Customer Logo / Customer Model Number |
| Packaging | Standard Packaging / Private-Label Packaging |
Wholesale and OEM Support
ZHY supports standard product supply, mixed-size purchasing, custom tools, OEM laser marking and private-label packaging.
Wholesale Order Support
- Standard and mixed-size orders
- Square, ball nose and corner radius tools
- Samples for mold steel machining tests
- Bulk quotations based on size and quantity
- Long-reach and customized dimensions
- Lead time confirmed before production
OEM and Private Label
- Customer logo laser marking
- Customer product and model numbers
- Custom labels and barcode stickers
- Plastic box and outer carton options
- Private-label packaging support
- Packaging verification before shipment
Production and Batch Quality Control
Precision grinding, controlled edge preparation and multi-stage inspection support repeatable geometry and consistent batch delivery.
Carbide Material Verification
Walter Five-Axis Grinding
Unequal Geometry Inspection
Fluid-Blasting Preparation
Automated Edge Polishing
HELICHECK PLUS Inspection
150× and 300× Inspection
Final Packaging Inspection
Request a Mold Steel End Mill Quotation
Send us the required tool type, diameter, flute length, overall length, workpiece grade, hardness, quantity and packaging requirements. Our team will review the application and provide a suitable quotation.
Request a Wholesale Quote
