Carbide Square End Mill for Carbon Steel
Designed for slotting, side milling, shoulder milling and flat-surface machining.
View SpecificationsWHOLESALE · OEM · PRIVATE LABEL
Carbide End Mills for Carbon Steel
ZHY carbide end mills for carbon steel combine an ultra-fine carbide substrate, AlTiN nano-composite coating and precision-ground cutting geometry for stable machining of carbon steel, mild steel, low-alloy steel and cast iron up to HRC55.
✓ Up to HRC55
✓ Standard & Custom Sizes
✓ OEM Laser Marking
✓ Wholesale Order Support
Carbon Steel End Mill Range
Choose from square, ball nose and corner radius designs according to the required machining operation. Standard and custom configurations are available for distributors, CNC workshops and private-label orders.

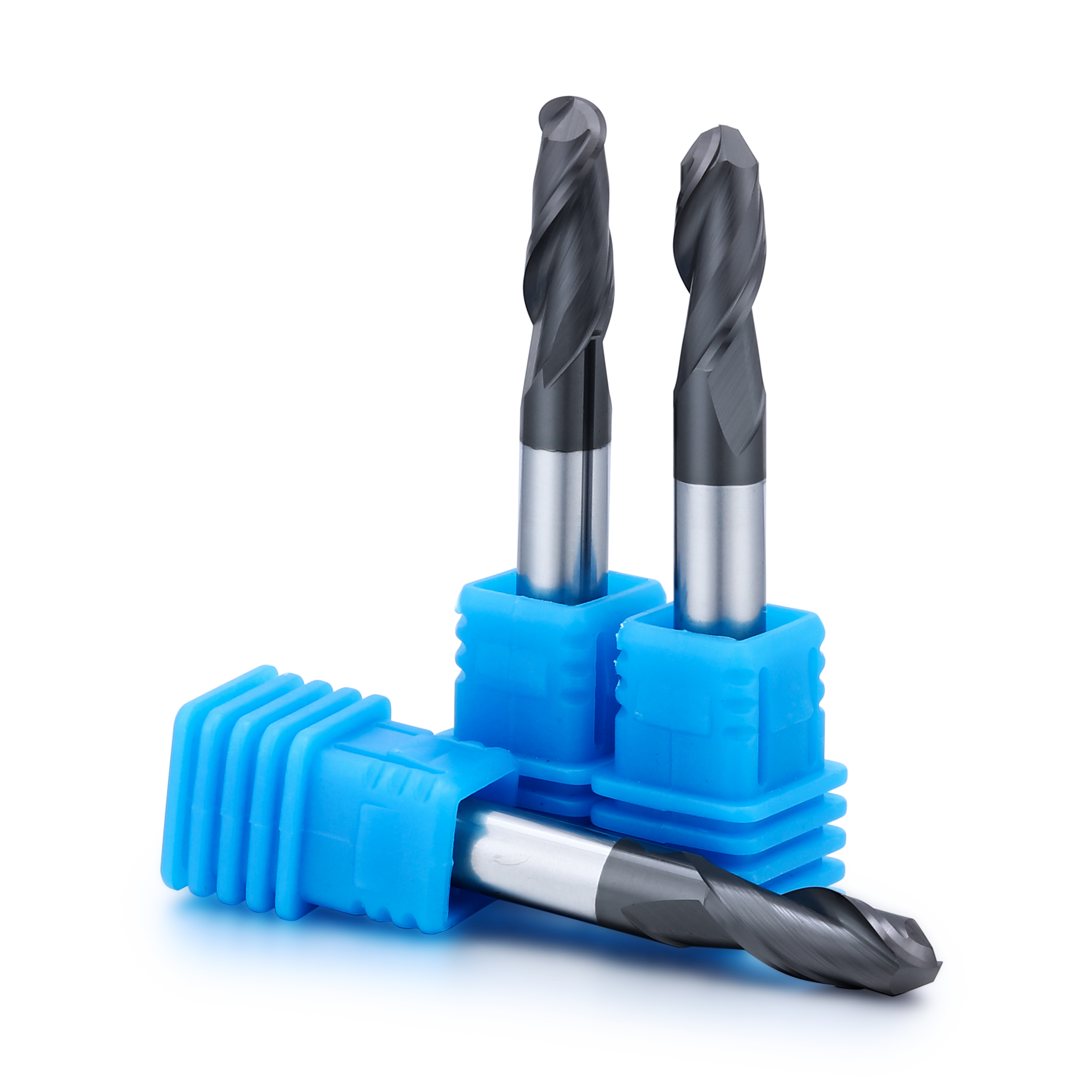

Carbide Ball Nose End Mill for Carbon Steel
Suitable for curved surfaces, cavities, contour milling and three-dimensional profile machining.
View Specifications

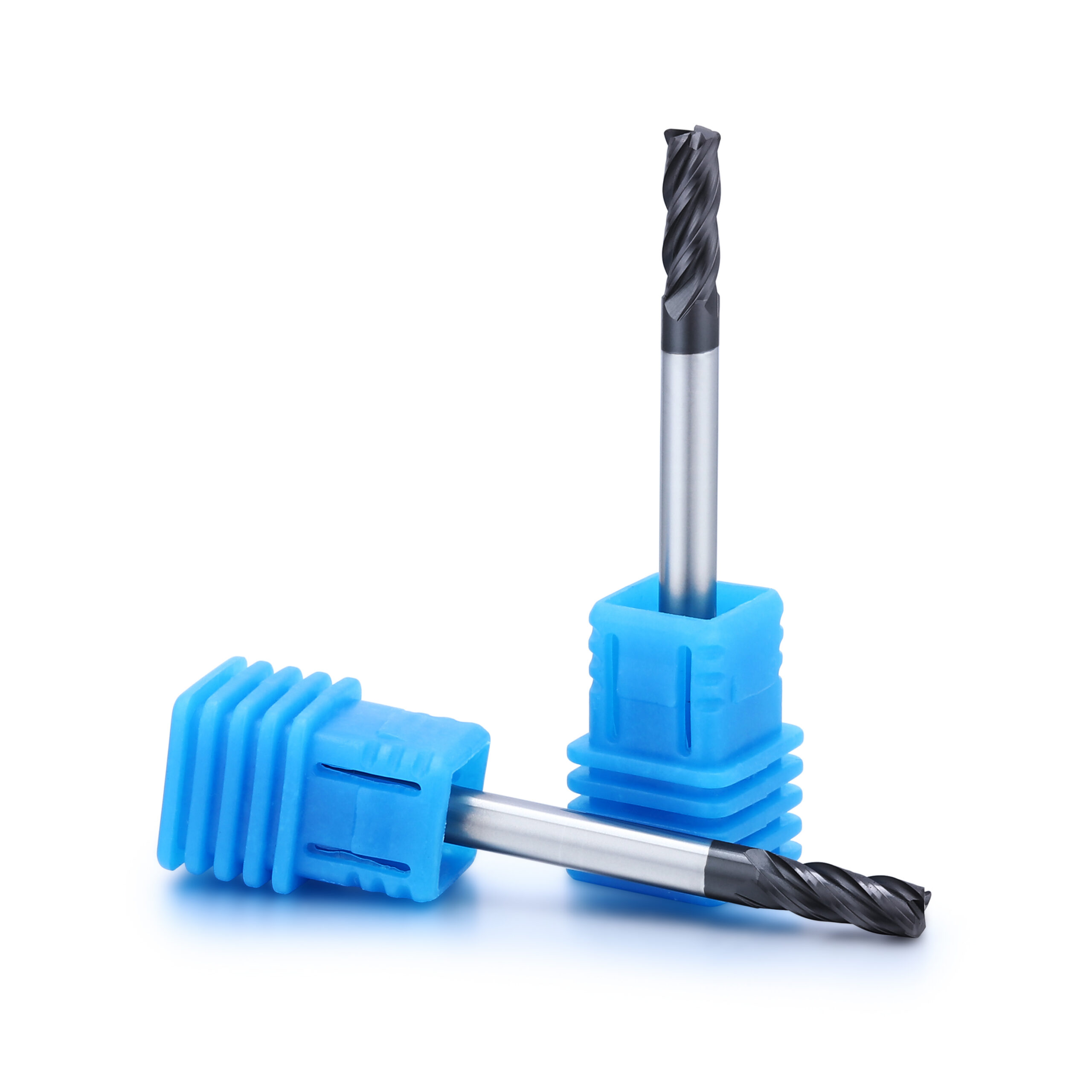

Carbide Corner Radius End Mill for Carbon Steel
Combines a flat cutting profile with reinforced corner strength for stable shoulder and contour machining.
View SpecificationsTechnical Performance Highlights
The carbon steel end mill range combines controlled carbide material, coating, cutting geometry, edge preparation and inspection processes.
Ultra-Fine Carbide Substrate
Ultra-fine carbide with grain size below 0.8 μm and 10% cobalt content provides a balance of edge strength, toughness and wear resistance.
AlTiN Nano-Composite Coating
High-aluminum AlTiN coating offers red hardness, oxidation resistance and wear resistance at temperatures up to approximately 1100°C.
Optimized Cutting Geometry
A 6° positive rake angle, 35° helix and dual-margin peripheral edge support smooth chip evacuation and stable cutting.
Controlled Edge Preparation
Fluid blasting and automated rubber-diamond polishing help remove microscopic burrs and control edge preparation within ±0.003 mm.
Precision Five-Axis Grinding
Manufactured using Walter five-axis precision grinding equipment to maintain cutting-edge sharpness and dimensional consistency.
Multi-Stage Inspection
Walter HELICHECK PLUS, 150× optical inspection and 300× high-definition appearance inspection support stable product quality.
Recommended Workpiece Materials
Mainly recommended for machining materials up to HRC55. Select the corresponding ZHY material-specific tool range for titanium, high-hardness steel or other special applications.
- Carbon Steel
- Low-Carbon Steel
- Mild Steel
- Low-Alloy Steel
- Cast Iron
- Selected Tool & Mold Steels
Available Product Options
Standard specifications and customized configurations can be supplied according to purchasing and machining requirements.
| Tool Type | Square / Ball Nose / Corner Radius |
|---|---|
| Flute Number | 2 Flutes / 4 Flutes / Custom |
| Diameter | Standard and Custom Sizes |
| Length | Standard / Long Reach / Custom |
| Coating | AlTiN / Custom Coating |
| Hardness Range | Up to HRC55 |
| Marking | ZHY Logo / Customer Logo / Customer Model Number |
| Packaging | Standard Packaging / Private-Label Packaging |
Wholesale and OEM Support
ZHY supports standard product supply, mixed-size purchasing, OEM laser marking and private-label packaging for distributors, importers, CNC workshops and tool brands.
Wholesale Ordering Support
- Standard and mixed-size orders
- Multiple diameters and tool types in one order
- Sample orders for inspection and machining tests
- Bulk quotation according to size and quantity
- Lead time confirmed according to order requirements
OEM and Private Label
- Customer logo laser marking
- Customer model and product codes
- Custom label and barcode sticker
- Plastic box and outer carton options
- Private-label packaging support
Batch Quality Control
Inspection is applied throughout production and packaging to support consistent repeat orders and accurate bulk delivery.
Carbide Material Verification
Tool Geometry Inspection
Edge Preparation Inspection
Diameter & Length Measurement
Coating & Appearance Inspection
Product Model Checking
Quantity & Label Verification
Final Inspection Before Shipment
Request a Carbon Steel End Mill Price List
Send us the required tool type, diameter, length, flute number, quantity and packaging requirements. Our team will review your request and provide a suitable wholesale quotation.
Request a Wholesale Quote
