Description
Product Overview

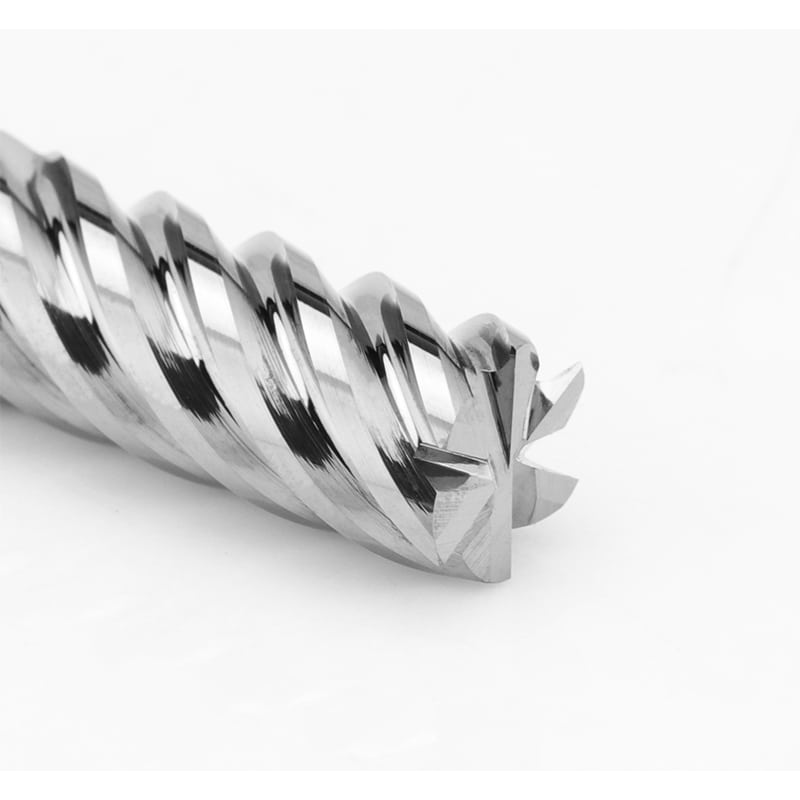

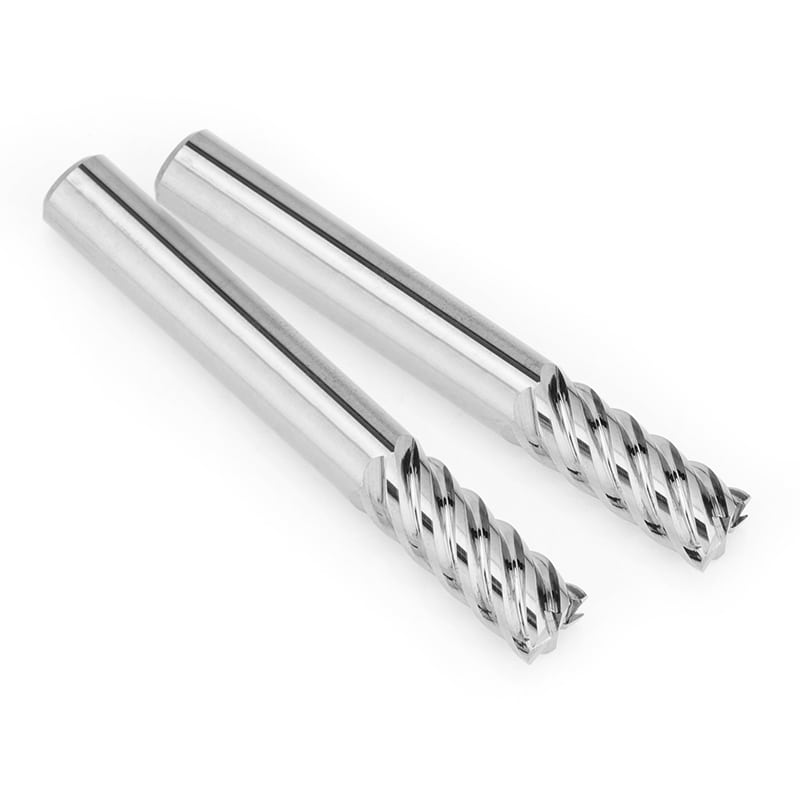

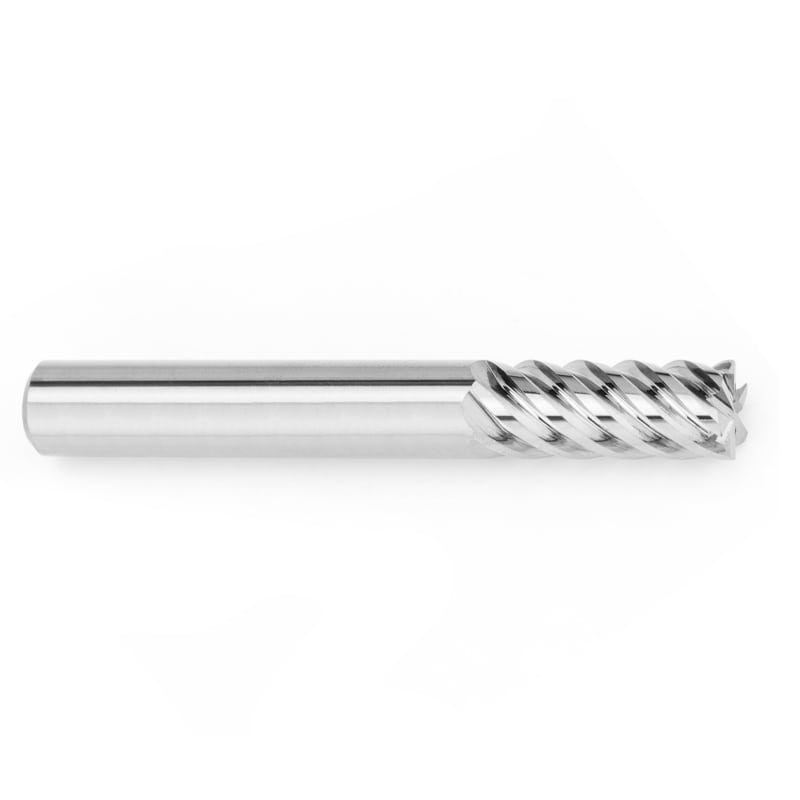

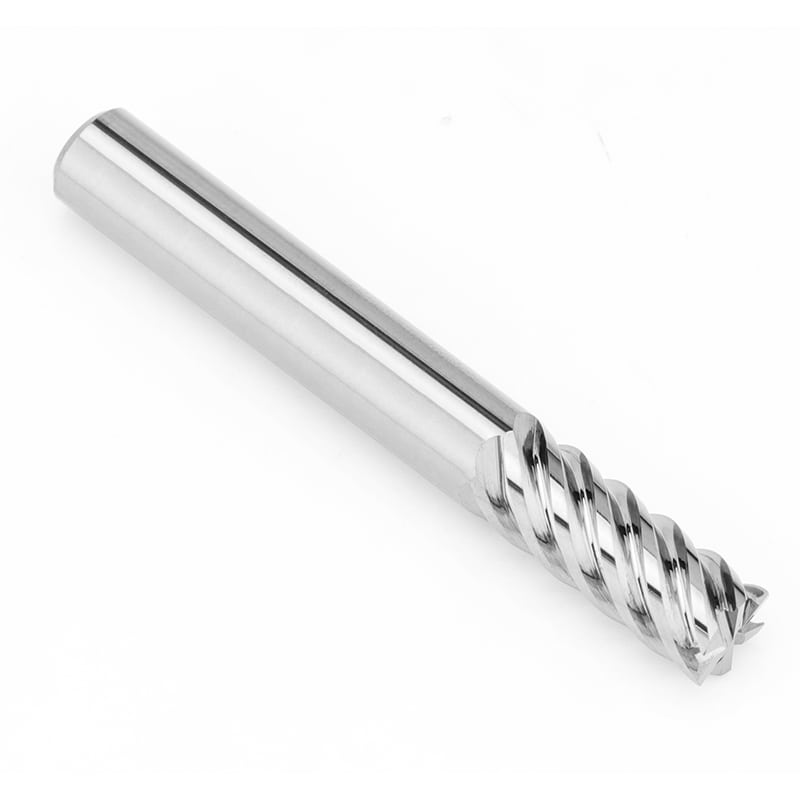

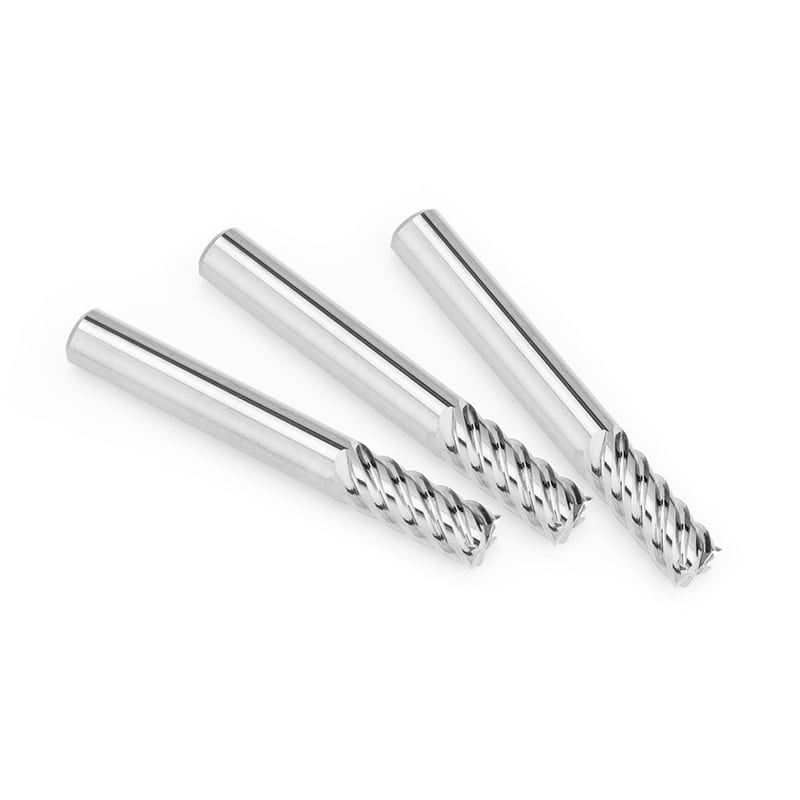

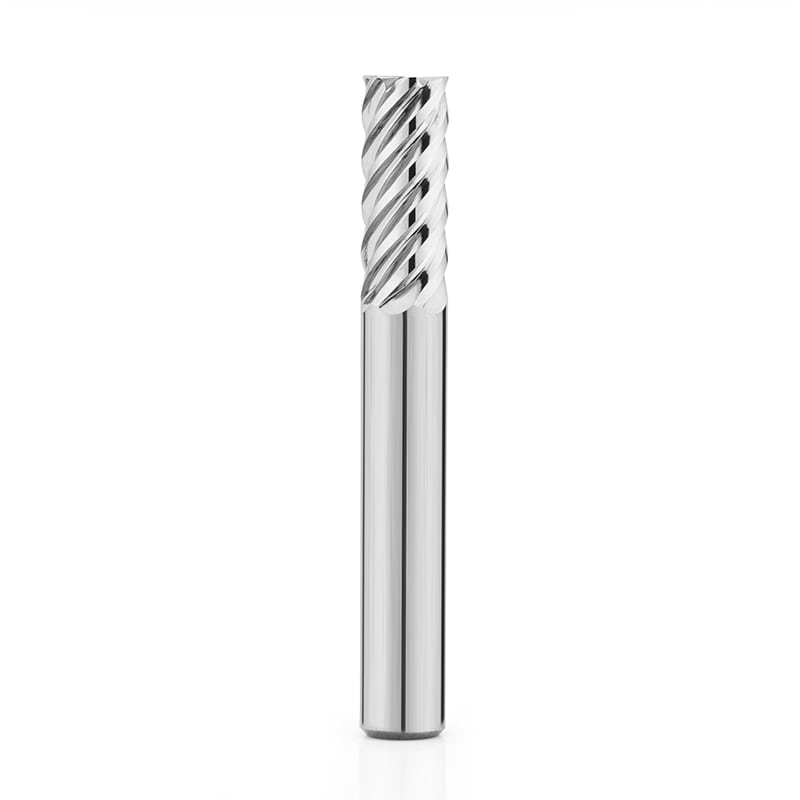

This solid ceramic end mill is designed for wear-resistant
trimming, profiling, slotting and edge finishing of CFRP,
GFRP, composite laminates and other abrasive
fiber-reinforced materials.
Unlike a ceramic-coated carbide cutter, the complete tool
is manufactured from ceramic material. Its high hardness
and abrasion resistance help maintain cutting-edge geometry
during repeated machining of carbon-fiber and glass-fiber
composite components.
Recommended Composite Machining Applications
Solid ceramic end mills are suitable for abrasive composite
materials where conventional cutting edges can experience
rapid wear and unstable edge quality.
CFRP Trimming
Suitable for peripheral trimming and edge machining
of carbon-fiber panels, molded parts and laminated
composite structures.
GFRP Profiling
Designed for profile and contour machining of
glass-fiber-reinforced components where abrasive
fibers create high cutting-edge wear.
Composite Slotting
Supports slot and groove machining with controlled
radial engagement, stable feed and suitable dust removal.
Edge and Contour Finishing
Suitable for finishing composite edges, cutouts,
curved profiles and precision molded component features.
Designed for Abrasive Composite Machining
Carbon fibers, glass fibers and composite fillers are highly
abrasive. The cutting process can also cause delamination,
fiber pull-out, frayed edges and heat-related resin damage
when tool geometry or machining conditions are unsuitable.
Abrasive Cutting-Edge Wear
- Carbon and glass fibers accelerate conventional tool wear
- Solid ceramic material provides high abrasion resistance
- Stable edge geometry supports repeated machining cycles
- Multi-edge geometry distributes cutting engagement
- Reduced tool changes can improve production continuity
- Actual tool life depends on the composite structure
Composite Edge Quality
- Stable cutting edges help control frayed surfaces
- Correct parameters can help reduce fiber pull-out
- Rigid workholding helps limit delamination
- Low spindle and holder runout improve engagement
- Correct feed helps reduce rubbing and resin heating
- Dust extraction should match the machining process
Why Select a Solid Ceramic End Mill?
Solid ceramic tools emphasize hardness, abrasion resistance
and long-term edge retention. They are best suited to rigid,
stable machining conditions with controlled cutting engagement.
High Wear Resistance
- Suitable for abrasive carbon-fiber materials
- Suitable for abrasive glass-fiber materials
- High hardness supports cutting-edge retention
- Reduced wear during repeated trimming operations
- Supports longer uninterrupted production cycles
- Suitable for stable automated machining
Conditions Required for Stable Performance
- Rigid machine structure and stable workholding
- Low-runout spindle and toolholder
- Controlled radial and axial engagement
- Avoid severe impact and unstable interrupted cutting
- Avoid excessive tool overhang
- Application testing is recommended before batch production
Solid Ceramic vs Cermet End Mills
Solid ceramic and cermet end mills are different tool-material
options. Selection should be based on machine rigidity,
machining interruption, composite construction and required life.
Choose Solid Ceramic When
- Maximum abrasion resistance is the main priority
- The machine and toolholder provide high rigidity
- Cutting engagement is stable and controlled
- The composite material creates rapid abrasive wear
- Long production cycles are required
- Toolpaths avoid severe impact loading
Consider Cermet When
- A balance of wear resistance and edge stability is required
- The machining process includes moderate interruption
- Trimming and profiling conditions vary more frequently
- Additional resistance to edge impact is required
- The application has not yet been fully stabilized
- Comparative testing is required before final selection
Solid Ceramic End Mill Design and Cutting Performance
Solid ceramic material, multi-edge geometry, dimensional
accuracy and controlled machining conditions work together
to determine composite cutting performance.
Solid Ceramic Construction
The entire cutting tool is manufactured from ceramic
material rather than using a ceramic coating on a
conventional carbide body.
High Material Hardness
High tool-material hardness supports resistance
to abrasive wear during CFRP and GFRP machining.
Multi-Edge Cutting Structure
Multiple cutting edges distribute engagement during
trimming, profiling, slotting and edge finishing.
High Abrasion Resistance
The ceramic material resists abrasive wear caused
by carbon fibers, glass fibers and composite fillers.
Stable Cutting-Edge Retention
Wear-resistant cutting edges help maintain geometry
during repeated composite machining cycles.
Controlled Cutting Engagement
Stable feed, suitable toolpaths and controlled
engagement help distribute cutting pressure across
the multi-edge structure.
Composite Edge Control
Suitable cutting conditions can help reduce
delamination, fiber pull-out and frayed edges
during trimming and profiling.
Reduced Tool-Change Frequency
Long cutting-edge retention can reduce machine
interruptions caused by frequent tool replacement.
Extended Tool-Life Potential
Under suitable composite-machining conditions,
tool life may reach approximately five times that
of conventional tools.
Batch Production Stability
Stable cutting-edge geometry supports repeatable
trimming and profiling during automated production.
Custom Tool Dimensions
Tool diameter, cutting length, neck length,
shank diameter and overall length can be customized.
Precision Inspection
Tool diameter, cutting length, flute geometry and
cutting-edge appearance are inspected before delivery.
Tool Life and Production Efficiency
Actual tool life depends on composite type, fiber content,
resin system, cutting engagement, feed, spindle runout,
tool overhang and machine rigidity.
Tool-Life Potential
- High resistance to abrasive fiber wear
- Stable cutting-edge geometry during repeat machining
- May reach approximately five times conventional tool life
- Fewer tool changes during production
- Longer uninterrupted machining cycles
- Final life must be verified under actual conditions
Production Benefits
- Reduced machine interruptions
- More stable edge quality across a production batch
- Lower tool-change frequency
- Suitable for automated composite production
- Improved consistency between repeated components
- Process verification is recommended before mass production
Recommended Machining Conditions
Solid ceramic tools require stable machine, toolholding
and cutting conditions. Improper use can increase the risk
of edge chipping or tool fracture.
Recommended Conditions
- Rigid machine and stable workholding
- Low spindle and toolholder runout
- Short and controlled tool overhang
- Stable toolpath without sudden impact
- Controlled radial and axial engagement
- Suitable dust extraction or approved process method
Conditions to Avoid
- Severe interrupted cutting
- Loose or vibrating workpieces
- Excessive tool overhang
- High spindle or holder runout
- Sudden full-width engagement
- Unknown embedded metal or hard inclusions
Recommended Workpiece Materials
This solid ceramic end mill is primarily intended for
abrasive fiber-reinforced composite and selected
composite-based engineering materials.
Available Solid Ceramic End Mill Configurations
Standard and customized dimensions can be supplied according
to the composite type, workpiece thickness, machining
operation and required tool reach.
| Tool Type | Solid Ceramic End Mill for CFRP and GFRP |
|---|---|
| Tool Material | Solid Ceramic |
| Cutting Structure | Multi-Edge / Application-Specific Geometry |
| Tool Diameter | Standard Metric Sizes / Custom Diameter |
| Cutting Length | Standard / Extended / Custom |
| Neck Diameter | Standard / Reduced Neck / Custom |
| Neck Length | Standard / Long Reach / Custom |
| Shank Diameter | Standard Shank / Custom Shank |
| Overall Length | Standard / Extended Length / Custom |
| Main Operations |
Trimming / Profiling / Slotting / Contour Machining / Edge Finishing |
| Primary Materials |
CFRP / GFRP / Composite Laminates / Fiber-Reinforced Plastics |
| OEM Options |
Custom Dimensions / Laser Marking / Customer Model Number / Private Label |
Send us the composite material, workpiece thickness,
tool diameter, cutting length, neck length, shank diameter,
overall length, machining operation and order quantity
to receive the current size list and quotation.
Information Required for Tool Selection
Composite materials vary in fiber type, resin system,
laminate construction and embedded layers. Complete
application information helps confirm tool suitability.
Workpiece Information
- CFRP, GFRP or other composite type
- Fiber content and fiber direction
- Resin system and laminate structure
- Workpiece or panel thickness
- Embedded metal or honeycomb layers
- Required edge and surface quality
Machining Information
- Trimming, profiling, slotting or finishing
- Tool diameter and cutting length
- Machine type and spindle condition
- Toolholder and measured runout
- Tool overhang and machining depth
- Dust extraction and production quantity
Solid Ceramic End Mill Manufacturer and OEM Supplier
ZHY supplies standard and customized solid ceramic end mills
to composite manufacturers, machining companies,
cutting-tool distributors and private-label tool brands.
Application and Wholesale Support
- Application review based on composite structure
- Standard and customized dimensions
- Trimming, profiling and slotting configurations
- Sample tools for machining verification
- Mixed-size and batch-order quotations
- Tool-selection support for CFRP and GFRP
OEM and Private Label
- Customer logo laser marking
- Customer model and product numbers
- Custom labels and barcode stickers
- Plastic box and outer-carton options
- Private-label packaging support
- Packaging verification before shipment
Production and Quality Inspection
Ceramic-material verification, dimensional measurement
and cutting-edge inspection support consistent geometry
and repeatable production quality.
Request a Solid Ceramic End Mill Recommendation
Send us the composite material, fiber type, resin system,
workpiece thickness, machining operation, tool diameter,
cutting length, machine rigidity, measured runout,
required edge quality and order quantity. Our team will
review the application and recommend a suitable standard
or customized solid ceramic end mill.
