Description
Product Overview

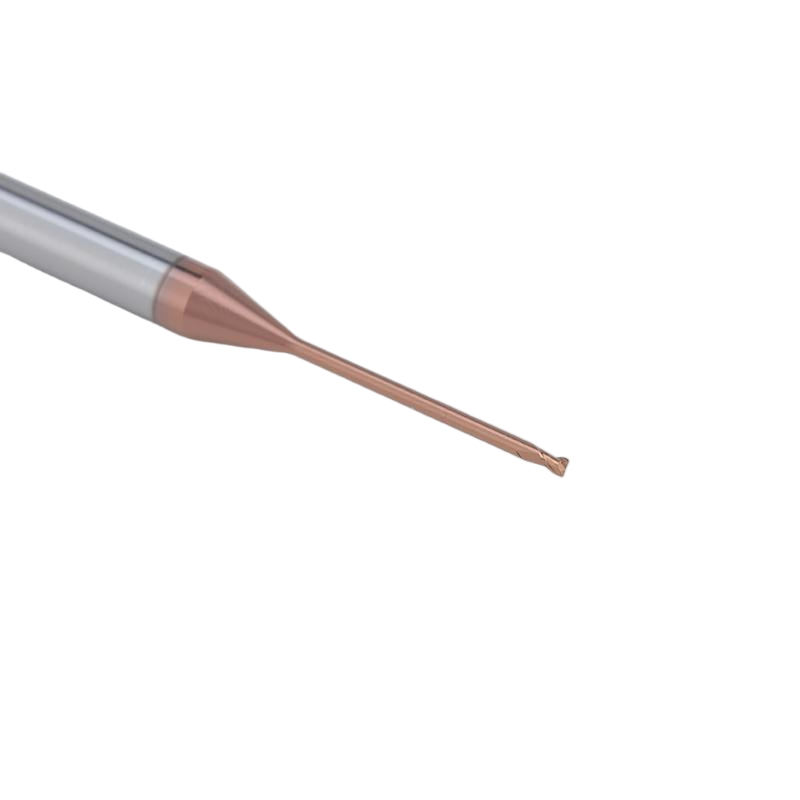

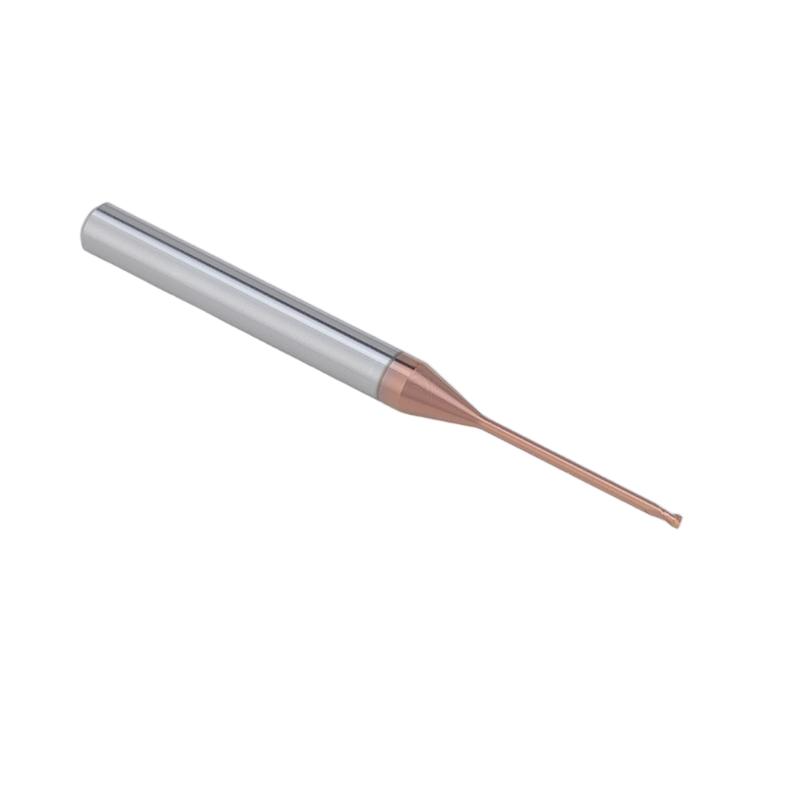

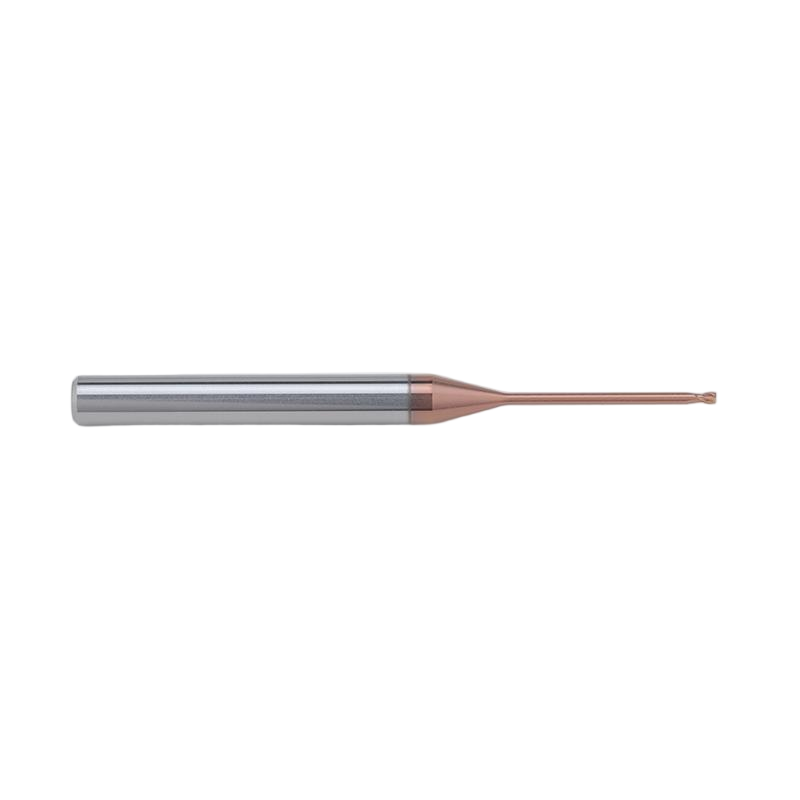

ZHY Long Neck Deep Groove Square End Mills are designed for precision machining of deep grooves, narrow slots, deep pockets and difficult-to-reach areas where standard end mills cannot provide sufficient machining depth.
The long neck and short flute configuration improves tool accessibility and reduces interference during deep groove machining. The optimized square cutting edge design provides stable cutting performance for side walls, slotting and deep cavity applications.
Manufactured from high-quality solid carbide with precision grinding technology, these deep groove square end mills provide reliable machining solutions for mold components, precision parts and complex CNC machining applications requiring extended reach capability.
Recommended Deep Groove Machining Applications
The extended neck structure and square cutting geometry make this tool suitable for machining deep features, narrow grooves and complex internal structures requiring long reach capability and stable cutting performance.
Deep Groove Machining
Suitable for deep narrow grooves and recessed features requiring extended tool reach and reduced machining interference.
Deep Pocket Milling
Designed for deep pockets and internal cavities requiring stable side milling and bottom machining performance.
Side Wall Machining
Provides reliable cutting performance for vertical walls, shoulders and precision groove structures.
Mold Component Machining
Suitable for mold inserts, precision components and complex structures requiring long reach machining.
Designed for Deep Groove Machining Challenges
Deep groove machining requires excellent tool rigidity, sufficient reach capability and effective vibration control. Long reach tools are more sensitive to tool deflection and unstable cutting conditions during deep pocket and narrow groove machining.
The optimized long neck structure, short flute design and precision-ground square cutting edges help improve machining stability, surface quality and tool reliability.
Long Reach and Cutting Stability
- Long neck configuration provides improved access to deep machining areas
- Short flute design helps increase tool rigidity during extended reach machining
- Reduces tool interference in narrow grooves and recessed areas
- Suitable for deep pockets and complex internal structures
- Supports stable CNC machining performance
Precision Square Cutting Performance
- Accurate square cutting geometry for slotting and side milling operations
- Precision grinding improves cutting edge consistency
- Helps reduce vibration during deep groove machining
- Supports repeatable machining results
- Suitable for mold and precision component applications
Long Neck Square Geometry and Cutting Performance
The solid carbide substrate, long neck structure, short flute configuration and precision grinding process work together to provide stable cutting performance for deep groove and deep pocket machining applications.
Long Neck Configuration
Extended neck design provides improved accessibility for deep grooves, narrow pockets and difficult-to-reach machining areas.
Short Flute Design
Short flute length improves tool rigidity and helps reduce vibration during long reach machining operations.
Solid Carbide Substrate
High-quality carbide provides suitable hardness and strength for stable deep groove and precision machining applications.
Precision Square Cutting Edge
Precision grinding ensures accurate cutting geometry, sharp edges and consistent performance during slotting and side milling operations.
Flute Configuration Options
Flute configuration should be selected according to workpiece material, machining depth, chip evacuation requirements and required surface finish. ZHY long neck deep groove square end mills are available in different flute configurations for various precision machining requirements.
2-Flute Deep Groove Square End Mills
- Larger flute space for improved chip evacuation
- Suitable for deep slot and pocket machining
- Helps reduce chip accumulation in deep features
- Supports stable cutting in long reach applications
- Suitable when chip clearance is a priority
4-Flute Deep Groove Square End Mills
- More cutting edges for finishing operations
- Suitable for side milling and precision profiling
- Supports improved surface quality
- Suitable for applications requiring stable wall finishing
- Helps achieve consistent machining results under suitable conditions
Coating Options for Different Workpiece Materials
Long neck deep groove square end mills can be supplied with different surface configurations according to the workpiece material, machining conditions and tool-life requirements. Coating selection should be confirmed together with tool geometry and cutting conditions.
For Non-Ferrous and Low-Adhesion Cutting
- Sharp cutting-edge geometry is prioritized
- Smooth chip flow helps reduce cutting resistance
- Suitable surface configurations can be selected according to the alloy
- Recommended for applications requiring clean cutting and fine surfaces
- Tool specification can be adjusted according to machining conditions
For Steel and Higher-Wear Applications
- Coating can be selected according to material hardness
- Wear and thermal resistance become more important
- Tool geometry should maintain sufficient cutting-edge strength
- Suitable for precision machining requiring stable tool life
- Custom coating configurations are available according to application requirements
Standard and Custom Long Neck Deep Groove Square End Mill Sizes
Standard and customized long neck deep groove square end mill dimensions are available according to machining depth, required reach, workpiece material, flute configuration and precision requirements.
| Tool Diameter | Standard Diameter Range / Custom Diameter |
|---|---|
| Flute Configuration | 2 Flutes / 4 Flutes / Custom |
| Tool Type | Long Neck Deep Groove Square End Mill |
| Cutting Edge | Square Cutting Edge / Custom Geometry |
| Flute Length | Short Flute / Custom Flute Length |
| Neck Length | Long Neck / Extended Reach / Custom |
| Shank Diameter | Standard Shank / Custom Shank |
| Overall Length | Standard / Extended / Custom |
| Coating | Selected According to Workpiece Material and Application |
Available Configurations
Standard and customized long neck deep groove square end mills can be supplied according to the machining material, groove depth, required reach, flute configuration and precision requirements.
| Tool Type | Carbide Long Neck Deep Groove Square End Mill |
|---|---|
| Flute Options | 2 Flutes / 4 Flutes / Custom |
| Tool Material | Solid Carbide |
| Cutting Diameter | Standard Diameter / Custom Diameter |
| Cutting Length | Short Flute / Custom Flute Length |
| Neck Configuration | Long Neck / Extended Reach / Custom |
| Coating Configuration | Selected According to Workpiece Material |
| Main Operations | Deep Groove Machining / Deep Pocket Milling / Side Wall Machining / Slotting / Precision Profiling |
| Dimensions | Standard / Long Reach / Custom Dimensions |
| Marking | ZHY Logo / Customer Logo / Customer Model Number |
| Packaging | Standard Packaging / Private-Label Packaging |
Recommended Workpiece Materials
Long neck deep groove square end mills can be configured for different workpiece materials. The carbide substrate, cutting geometry, long neck structure and coating should be selected according to the actual machining application.
Long Neck Deep Groove Square End Mill Selection and Application Notes
Long reach square end mills are more sensitive to tool deflection and vibration. Proper tool selection and machining conditions are important for achieving stable performance in deep groove and deep pocket applications.
Tool Selection
- Select the shortest practical neck length according to machining depth
- Choose suitable flute length to balance cutting ability and tool rigidity
- Select flute configuration according to chip evacuation requirements
- Match cutting geometry with workpiece material and machining conditions
- Confirm groove depth, slot width and accessibility requirements before ordering
Machining Stability
- Maintain low spindle and toolholder runout
- Use rigid toolholding and stable workpiece clamping
- Avoid excessive cutting engagement during deep machining
- Provide effective chip evacuation in deep grooves and pockets
- Use suitable cutting parameters for long reach applications
Long Neck Deep Groove Square End Mill Manufacturer and OEM Supplier
ZHY supplies carbide long neck deep groove square end mills to distributors, importers, mold manufacturers, precision machining companies and private-label cutting-tool brands.
Wholesale Order Support
- Standard and mixed-size orders
- Long neck and short flute configurations
- Different diameter and reach options
- Samples for machining evaluation
- Drawing-based custom dimensions
- Bulk quotations based on size and quantity
OEM and Private Label
- Customer logo laser marking
- Customer product and model numbers
- Custom labels and barcode stickers
- Standard or customer-specified packaging
- Private-label packaging support
- Packaging verification before shipment
Production and Deep Groove Tool Inspection
Precision grinding and dimensional inspection are especially important for long reach tools because small variations in geometry can affect tool rigidity, vibration control and machining performance.
Request a Long Neck Deep Groove Square End Mill Quotation
Send us the required cutting diameter, flute configuration, flute length, neck length, shank diameter, overall length, workpiece material, machining depth, application and quantity requirements. Our team will review the application and provide a suitable standard or customized long neck deep groove square end mill solution.
