Description
Product Overview

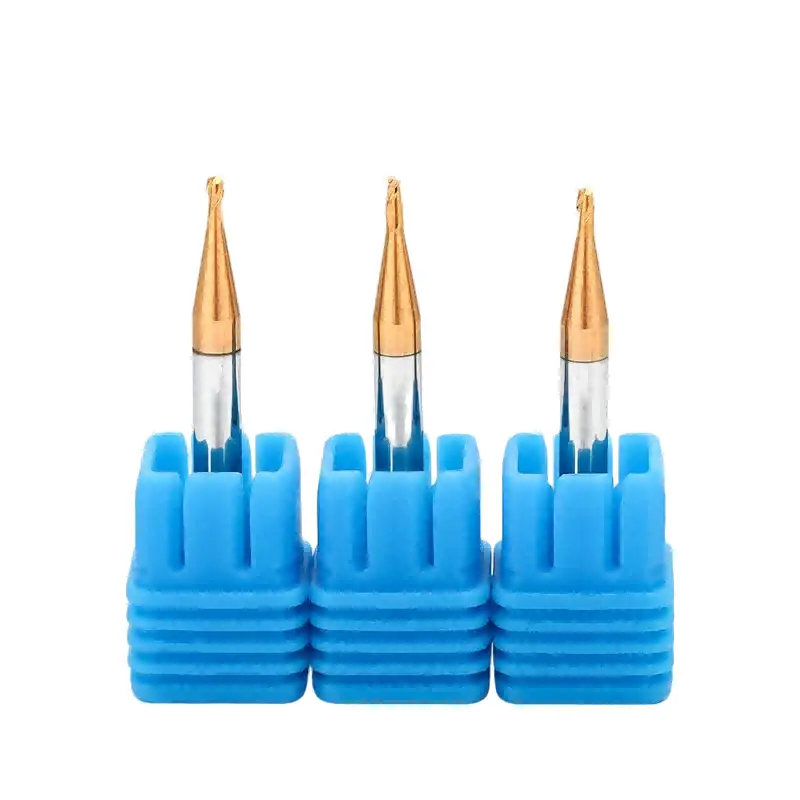

This micro diameter corner radius end mill is designed for precision machining of miniature features, narrow slots, small cavities and detailed structures requiring high accuracy, excellent edge strength and stable cutting performance.
Available with different flute configurations including 2-flute and 4-flute designs, ZHY micro diameter corner radius end mills provide a balanced solution between cutting efficiency, chip evacuation and improved cutting edge durability for precision machining applications.
Manufactured from high-quality solid carbide with precision grinding technology, these micro corner radius end mills provide reliable machining solutions for mold components, electronic parts, medical components and other miniature precision applications requiring smooth transitions and reinforced cutting edges.
Recommended Micro Machining Applications
The compact tool diameter and optimized corner radius geometry make this micro end mill suitable for precision machining applications requiring accurate dimensions, improved edge strength and excellent surface quality.
Micro Slot Machining
Suitable for narrow grooves, miniature slots and small features requiring precise cutting control and improved corner strength.
Precision Mold Components
Designed for mold inserts, micro cavities and detailed structures requiring high machining accuracy and stable finishing performance.
Shoulder and Corner Finishing
Supports precision machining of side walls, corners and transition areas requiring stronger cutting edges.
Medical Component Machining
Suitable for miniature components requiring controlled cutting, smooth surfaces and repeatable machining quality.
Designed for Micro Corner Radius Machining Challenges
Micro corner radius machining requires excellent tool rigidity, precise radius control and effective chip evacuation. Small diameter tools are more sensitive to vibration, tool deflection and unstable cutting conditions.
The optimized corner radius geometry and precision-ground cutting edges help improve machining consistency, edge durability and surface quality.
Corner Strength and Cutting Efficiency
- Multiple flute configurations available for different machining requirements
- Corner radius edge improves cutting edge strength compared with sharp corner designs
- 2-flute design provides larger chip space for slotting applications
- 4-flute design provides more cutting edges for finishing operations
- Supports stable CNC machining performance
Precision Cutting and Tool Stability
- Micro diameter structure for miniature features and narrow areas
- Precision-ground corner radius improves machining consistency
- Helps reduce cutting vibration and edge chipping risk
- Supports repeatable machining results
- Suitable for high-precision mold and component machining
Micro Diameter Corner Radius Geometry and Cutting Performance
The solid carbide substrate, flute configuration, corner radius geometry and precision grinding process work together to provide stable cutting performance for miniature CNC machining applications.
Micro Diameter Design
Small diameter geometry enables machining of miniature features, narrow slots and complex structures requiring high precision.
2-Flute / 4-Flute Configuration
Different flute configurations allow customers to balance chip space, cutting efficiency and surface finish requirements according to machining applications.
Solid Carbide Substrate
High-quality carbide provides suitable hardness and rigidity for precision miniature cutting applications.
Precision Corner Radius Edge
Precision grinding ensures accurate corner radius geometry, improved edge strength and consistent cutting performance during machining.
2-Flute and 4-Flute Configuration Options
Flute count should be selected according to the workpiece material, machining feature, chip volume, cutting engagement and required surface finish. ZHY micro diameter corner radius end mills are available in 2-flute and 4-flute configurations for different precision machining requirements.
2-Flute Micro Corner Radius End Mills
- Larger flute space for chip evacuation
- Suitable for narrow slot and cavity machining
- Useful when chip clearance is a priority
- Supports stable cutting in small-diameter applications
- Suitable for applications requiring smooth material removal
4-Flute Micro Corner Radius End Mills
- More cutting edges during machining
- Suitable for side milling and finishing operations
- Supports higher cutting-edge engagement
- Suitable when surface finish and edge strength are important
- Helps achieve stable machining quality under suitable conditions
Coating Options for Different Workpiece Materials
Micro diameter corner radius end mills can be supplied with different surface configurations according to the workpiece material, machining conditions and tool-life requirements. Coating selection should be confirmed together with cutting-edge geometry rather than by coating alone.
For Non-Ferrous and Low-Adhesion Cutting
- Sharp cutting-edge geometry is prioritized
- Smooth chip flow helps reduce cutting resistance
- Suitable surface configurations can be selected according to the alloy
- Recommended for applications requiring clean cutting and fine features
- Tool specification can be adjusted according to machining conditions
For Steel and Higher-Wear Applications
- Coating can be selected according to material hardness
- Wear and thermal resistance become more important
- Corner radius geometry helps improve edge durability
- Suitable for precision machining requiring stable tool life
- Custom coating configurations are available according to application requirements
Standard and Custom Micro Diameter Corner Radius End Mill Sizes
Standard micro diameter corner radius end mills and customized dimensions are available according to the required machining feature, tool reach, workpiece material, corner radius and precision requirements.
| Tool Diameter | Micro Diameter Range / Custom Diameter |
|---|---|
| Flute Configuration | 2 Flutes / 4 Flutes |
| Tool Type | Corner Radius End Mill |
| Corner Radius | Standard Radius / Custom Radius |
| Cutting Length | Standard / Short Cutting Edge / Custom |
| Neck Length | Standard / Long Neck / Custom |
| Shank Diameter | Standard Shank / Custom Shank |
| Overall Length | Standard / Extended / Custom |
| Coating | Selected According to Workpiece Material and Application |
Available Configurations
Standard and customized micro diameter corner radius end mills can be supplied according to the machining material, feature size, required reach, flute configuration, corner radius and precision requirements.
| Tool Type | Micro Diameter Carbide Corner Radius End Mill |
|---|---|
| Flute Options | 2 Flutes / 4 Flutes |
| Tool Material | Solid Carbide |
| Cutting Diameter | Standard Micro Diameter / Custom Diameter |
| Corner Radius | Standard Radius / Custom Radius |
| Cutting Length | Standard / Custom |
| Neck Configuration | Standard / Long Neck / Custom |
| Coating Configuration | Selected According to Workpiece Material |
| Main Operations | Micro Slotting / Shoulder Machining / Corner Finishing / Precision Profiling / Finishing |
| Dimensions | Standard / Long Reach / Custom Dimensions |
| Marking | ZHY Logo / Customer Logo / Customer Model Number |
| Packaging | Standard Packaging / Private-Label Packaging |
Recommended Workpiece Materials
Micro diameter corner radius end mills can be configured for different workpiece materials. The carbide substrate, flute configuration, corner radius geometry and coating should be selected according to the actual machining application.
Micro Corner Radius End Mill Selection and Application Notes
Because micro diameter tools have lower cross-sectional rigidity than larger end mills, tool selection and machining conditions should be confirmed carefully before production.
Tool Selection
- Select only the cutting length required by the machining feature
- Use the shortest practical tool reach whenever possible
- Choose 2 or 4 flutes according to chip evacuation and machining operation
- Select suitable corner radius according to the required edge strength and surface geometry
- Match cutting-edge geometry to the workpiece material
Machining Stability
- Maintain low spindle and toolholder runout
- Use rigid toolholding and stable workpiece clamping
- Avoid excessive radial or axial cutting engagement
- Provide reliable chip evacuation around small features
- Use suitable cutting parameters for the actual tool diameter
Micro Diameter Corner Radius End Mill Manufacturer and OEM Supplier
ZHY supplies micro diameter carbide corner radius end mills to distributors, importers, precision component manufacturers, CNC workshops and private-label cutting-tool brands.
Wholesale Order Support
- Standard and mixed-size orders
- 2-flute and 4-flute configurations
- Micro diameter and long-neck options
- Samples for machining evaluation
- Drawing-based custom dimensions
- Bulk quotations based on size and quantity
OEM and Private Label
- Customer logo laser marking
- Customer product and model numbers
- Custom labels and barcode stickers
- Standard or customer-specified packaging
- Private-label packaging support
- Packaging verification before shipment
Production and Micro Tool Inspection
Precision grinding and dimensional inspection are especially important for micro diameter tools because small variations in cutting geometry can have a greater effect on machining stability and tool performance.
Request a Micro Diameter Corner Radius End Mill Quotation
Send us the required cutting diameter, flute configuration, corner radius, cutting length, neck length, shank diameter, overall length, workpiece material, machining application, quantity and packaging requirements. Our team will review the application and provide a suitable standard or customized micro corner radius end mill solution.
