Description
Product Overview

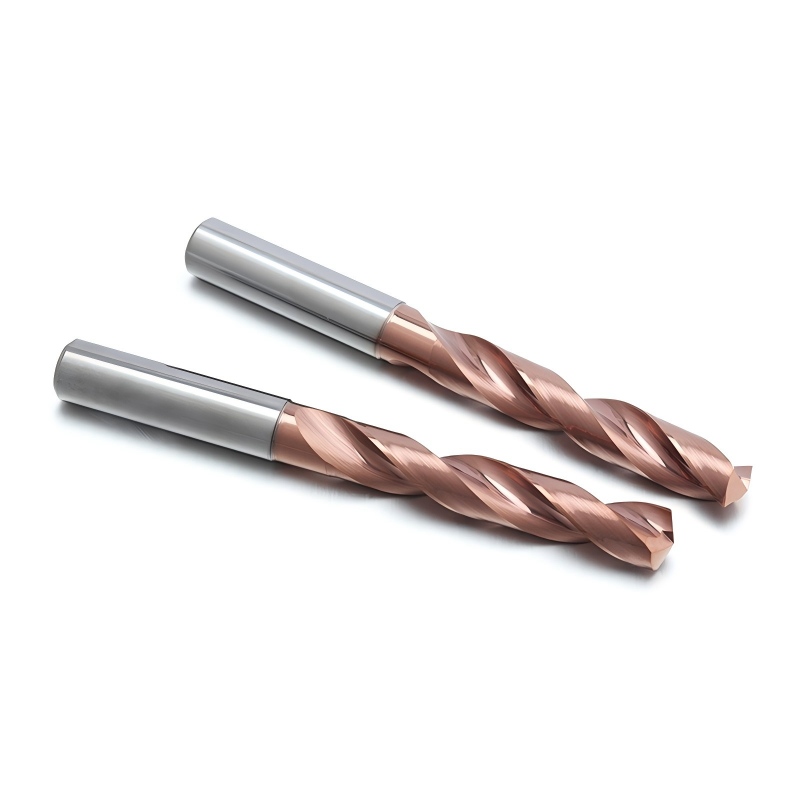

This external-coolant solid carbide drill is designed for
general CNC hole machining under external coolant or lubrication
conditions. The 2-flute structure provides chip space for
material evacuation, while the solid carbide body supports
rigidity and dimensional stability during drilling.
Tool diameter, cutting length, overall length, shank dimensions,
coating and point geometry can be selected according to the
workpiece material, hole feature and production requirements.
Standard sizes and drawing-based custom tools are available for
distributors, machining companies and OEM customers.
Recommended Drilling Applications
Recommended for standard CNC drilling applications where
stable toolholding, external coolant supply and controlled
chip evacuation are available.
General Hole Drilling
Suitable for standard holes in plates, blocks,
housings and general CNC-machined components.
Through-Hole Machining
Supports through-hole drilling where chip evacuation
and controlled breakthrough are required.
Shallow Blind Holes
Can be selected for blind-hole machining when hole
depth, chip removal and coolant conditions are suitable.
Batch CNC Production
Suitable for repeated hole machining requiring
consistent tool dimensions and repeatable supply.
Application Confirmation Is Recommended
Drill diameter, hole depth, depth-to-diameter ratio,
workpiece material, machine rigidity, spindle runout,
external coolant direction and toolholding condition
should be reviewed before selecting the final drill.
Tool Structure and Drilling Performance
The solid carbide construction, 2-flute geometry and
material-specific coating support stable CNC hole machining
under suitable external-coolant conditions.
Solid Carbide Construction
The solid carbide body supports tool rigidity,
cutting-edge stability and dimensional consistency
during CNC drilling.
2-Flute Chip Space
The 2-flute configuration provides space for chip
formation and evacuation from the drilled hole.
External-Coolant Application
External coolant or lubrication can support cutting-zone
cooling and chip movement in standard drilling conditions.
Application-Specific Coating
Coating can be selected according to the workpiece
material, cutting heat, wear condition and required
production volume.
Point Geometry Options
Standard or customized point geometry can be reviewed
according to the material, hole feature and entry condition.
Custom Dimension Support
Diameter, cutting length, overall length and shank
dimensions can be produced according to confirmed
specifications or customer drawings.
Standard and Custom Drill Sizes
Standard metric sizes and customized configurations are
available according to the required hole diameter, drilling
depth, machine condition and order quantity.
| Tool Diameter | Standard Metric Sizes / Custom Diameter |
|---|---|
| Cutting Length | Standard / Customized According to Hole Depth |
| Shank Diameter | Standard Shank / Custom Shank |
| Overall Length | Standard Length / Extended Length / Custom |
| Flute Configuration | 2 Flutes |
| Coolant Method | External Coolant |
Send us the required diameter, hole depth, cutting length,
shank diameter, overall length, workpiece material and
order quantity to receive the available size list
and quotation.
Available Configurations
Standard and customized external-coolant carbide drills can
be supplied according to the workpiece material, hole feature,
machine condition and production requirements.
| Tool Type | External-Coolant Solid Carbide Drill |
|---|---|
| Tool Material | Solid Carbide |
| Flute Configuration | 2 Flutes |
| Coolant Method | External Coolant or Lubrication |
| Coating | Selected According to Workpiece Material |
| Point Geometry | Standard / Application-Specific / Custom |
| Diameter Tolerance | According to Confirmed Specification or Drawing |
| Diameter and Length | Standard Sizes / Custom Dimensions |
| Marking |
ZHY Logo / Customer Logo / Customer Model Number |
| Packaging |
Standard Packaging / Private-Label Packaging |
Workpiece Material Options
The carbide grade, coating and cutting geometry should be
selected according to the actual workpiece material and
drilling conditions.
Drill Selection and Application Notes
Provide Before Ordering
- Workpiece material and material grade
- Required hole diameter and tolerance
- Hole depth and depth-to-diameter ratio
- Through hole or blind hole
- External coolant or lubrication condition
- Machine spindle and toolholder information
- Required quantity and delivery schedule
Machining Considerations
- Use a rigid machine and stable toolholder
- Control spindle and holder runout
- Use the shortest practical tool overhang
- Direct coolant toward the cutting zone
- Prevent chip accumulation in blind holes
- Match parameters to material and hole depth
- Confirm conditions before batch production
Wholesale and OEM Support
ZHY supplies standard and customized external-coolant carbide
drills for distributors, importers, CNC machining companies
and private-label cutting-tool brands.
Wholesale Order Support
- Standard and mixed-size orders
- Samples for drilling evaluation
- Batch quotations based on size and quantity
- Standard and customized dimensions
- Repeat-order specification management
- Application review before production
OEM and Private Label
- Customer logo laser marking
- Customer model and product numbers
- Custom labels and barcode stickers
- Plastic box and outer carton options
- Private-label packaging support
- Packaging verification before shipment
Production and Inspection
Tool dimensions, cutting geometry, coating appearance,
laser marking and packaging are checked to support
repeatable batch supply.
Request an External-Coolant Carbide Drill Quotation
Send us the workpiece material, hole diameter, hole depth,
tolerance, external coolant condition, required dimensions,
quantity and packaging requirements. Our team will review
the application and recommend a suitable standard or
customized external-coolant carbide drill.
