Description
Product Overview

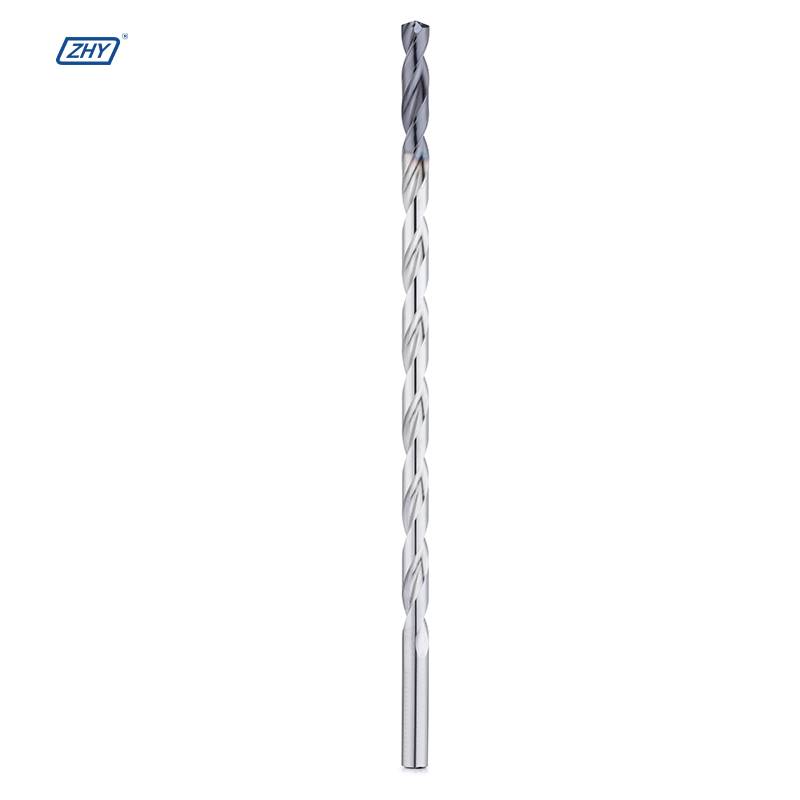

This custom long-reach solid carbide drill is designed for extended-reach and deeper-hole CNC machining applications where a standard-length drill cannot access the required feature. The extended cutting and overall length can be developed according to the hole depth, component geometry and machine conditions.
The solid carbide body supports tool rigidity and dimensional stability, while the spiral-flute structure provides a path for chip evacuation. Tool diameter, cutting length, overall length, shank size, point geometry, coating and coolant configuration can be reviewed according to drawings and application requirements.
Recommended Drilling Applications
Recommended for components requiring increased drilling reach, customized hole depth or access beyond the capability of standard-length carbide drills.
Extended-Reach Drilling
Suitable for recessed holes and difficult-to-access features requiring additional tool length or overhang.
Deeper-Hole Machining
Can be developed for hole depths beyond standard drill lengths after reviewing chip evacuation and coolant conditions.
Recessed Component Features
Suitable for holes located behind shoulders, inside cavities or within components where tool access is restricted.
Drawing-Based Projects
Available for non-standard hole features requiring customized diameter, reach, shank dimensions or point geometry.
Long-Reach Drilling Requires Application Review
Hole diameter, drilling depth, tool overhang, workpiece material, machine rigidity, spindle runout, coolant supply and chip-evacuation conditions should be reviewed before confirming the final drill design.
Tool Structure and Drilling Performance
The solid carbide body, extended-length structure, spiral flutes and application-specific geometry work together to support customized drilling operations.
Solid Carbide Construction
The solid carbide body supports cutting-edge stability, tool rigidity and dimensional consistency during CNC drilling.
Extended-Length Design
Cutting length, reach and overall length can be increased according to the required hole position and drilling depth.

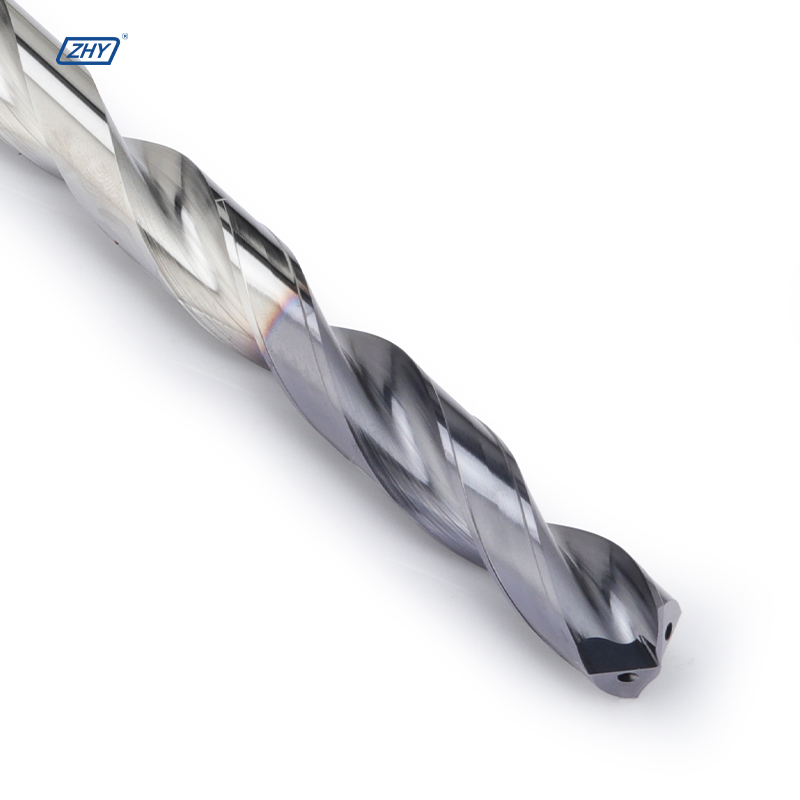

Spiral-Flute Chip Path
The spiral-flute structure provides a path for chip evacuation during extended-reach and deeper-hole machining.
Application-Specific Coating
Coating can be selected according to the workpiece material, cutting heat, abrasive wear and production requirements.
Custom Point Geometry
Point angle, cutting-edge preparation and entry geometry can be reviewed according to the material and hole feature.
Custom Coolant Configuration
External or internal coolant options can be reviewed according to the tool diameter, drilling depth and machine coolant system.

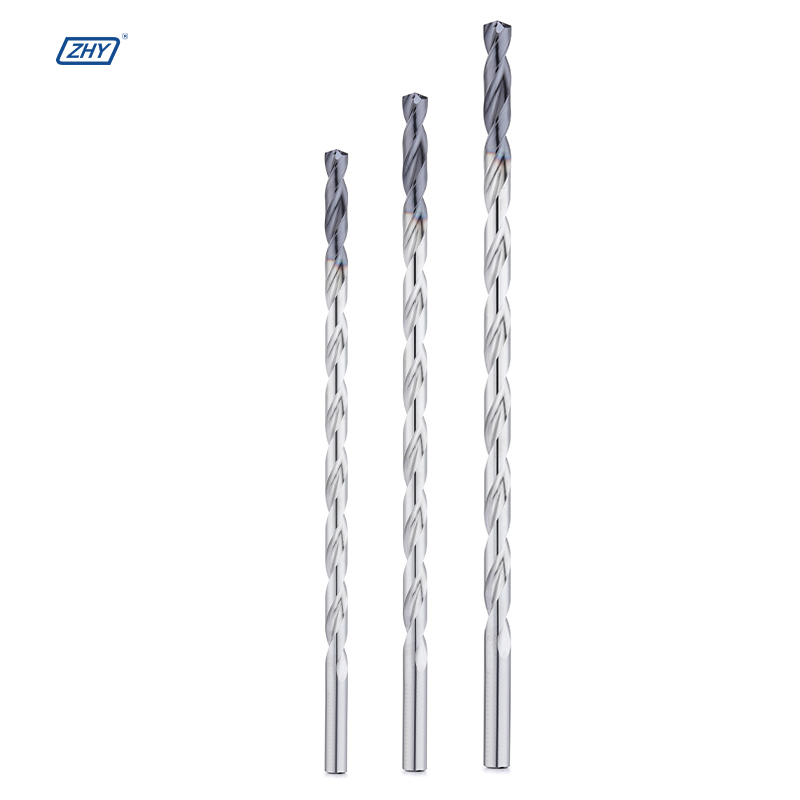

Standard and Custom Long-Reach Drill Sizes
Dimensions can be developed according to the required hole diameter, drilling depth, tool reach, machine clearance and component geometry.
| Tool Diameter | Standard Metric Sizes / Custom Diameter |
|---|---|
| Drilling Depth | Application-Specific / Custom |
| Cutting Length | Extended / Customized According to Hole Depth |
| Reach Length | Standard / Extended / Custom |
| Shank Diameter | Standard Shank / Custom Shank |
| Overall Length | Extended Length / Drawing-Based Custom Length |
| Flute Type | Spiral Flute / Application-Specific |
| Coolant Method | External Coolant / Internal Coolant After Review |
Send us the required diameter, hole depth, cutting length, reach length, shank diameter, overall length, workpiece material, coolant condition and order quantity to receive a tool proposal and quotation.
Available Configurations
Long-reach carbide drills can be customized according to the actual hole feature, component clearance, drilling depth, workpiece material and production conditions.
| Tool Type | Custom Long-Reach Solid Carbide Drill |
|---|---|
| Tool Material | Solid Carbide |
| Flute Structure | Spiral Flute / Custom |
| Coating | Uncoated / TiAlN or Other Material-Specific Coating |
| Point Geometry | Standard / Application-Specific / Custom |
| Coolant Configuration | Selected According to Diameter, Depth and Machine System |
| Diameter Tolerance | According to Confirmed Specification or Drawing |
| Diameter and Length | Standard Reference Sizes / Custom Dimensions |
| Marking | ZHY Logo / Customer Logo / Customer Model Number |
| Packaging | Standard Packaging / Private-Label Packaging |
Workpiece Material Options
The carbide grade, coating, flute geometry and coolant method should be selected according to the actual workpiece material and drilling conditions.
Long-Reach Drill Selection and Application Notes
Provide Before Ordering
- Workpiece material and material grade
- Required hole diameter and tolerance
- Hole depth and depth-to-diameter ratio
- Required cutting length and reach length
- Through hole or blind hole
- Machine and coolant-system information
- Drawing, quantity and delivery schedule
Machining Considerations
- Use the shortest practical tool reach
- Use a rigid machine and stable toolholder
- Control spindle and holder runout
- Confirm sufficient coolant and chip evacuation
- Reduce cutting load as overhang increases
- Prevent chip accumulation in blind holes
- Confirm conditions before batch production
Wholesale and OEM Support
ZHY supplies customized long-reach solid carbide drills for distributors, importers, CNC machining companies and private-label cutting-tool brands.
Custom Order Support
- Drawing-based drill dimensions
- Custom diameter and drilling depth
- Extended cutting and overall lengths
- Application-specific point geometry
- Sample tools for machining evaluation
- Repeat-order specification management
OEM and Private Label
- Customer logo laser marking
- Customer model and product numbers
- Custom labels and barcode stickers
- Plastic box and outer carton options
- Private-label packaging support
- Packaging verification before shipment
Production and Inspection
Tool dimensions, length, point geometry, flute structure, coating appearance, marking and packaging are checked to support repeatable custom-tool supply.
Request a Custom Long-Reach Carbide Drill Quotation
Send us the workpiece material, hole diameter, drilling depth, required reach, tolerance, coolant condition, drawing, quantity and packaging requirements. Our team will review the application and provide a suitable customized drill proposal.
